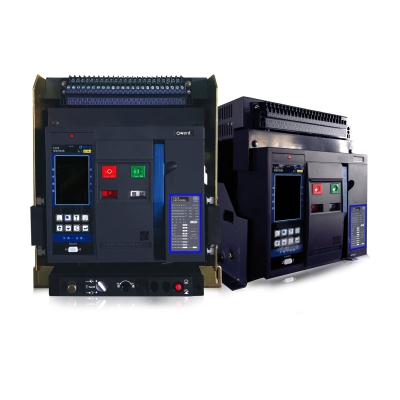

TAX Series Air Circuit Breaker
● Product Information
TAX series intelligent air circuit breakers are suitable for AC 50Hz, rated voltage up to 660V (690V) and below, rated current 630A~6300A in power distribution network, used for distributing electric energy and protecting the lines and power supply equipment from the hazards of overload, undervoltage, short-circuit, single-phase grounding and other faults. The circuit breaker has intelligent protection function and precise selective protection, which can improve the reliability of power supply and avoid unnecessary power outage. At the same time with open communication interface, can be ‘four remote’ to meet the requirements of the control center and automation system. The circuit breaker without intelligent controller and sensor can be used as isolator.
-
FEATURES
-
STANDARD
-
DOWNLOAD
By installation method：
Fixed, draw-out
By poles：
3 poles、
4 poles；
By operation method：
Electrically operated, manually operated (for overhaul and maintenance).
Operating mechanism
◆ The operating mechanism is of the stored-energy type, i.e., it relies on a spring action with pre-stored energy；
◆The spring can be stored manually by means of a handle on the front panel or electrically using a geared motor；
◆The circuit breakers can be operated remotely by means of closing and opening coils mounted inside the operating mechanism and by using a geared motor to store energy in the springs. If required, they can also be used in conjunction with a monitoring system。
